DS-2DE2A404IW-DE3 Hikvision PTZ Camera

Product Overview

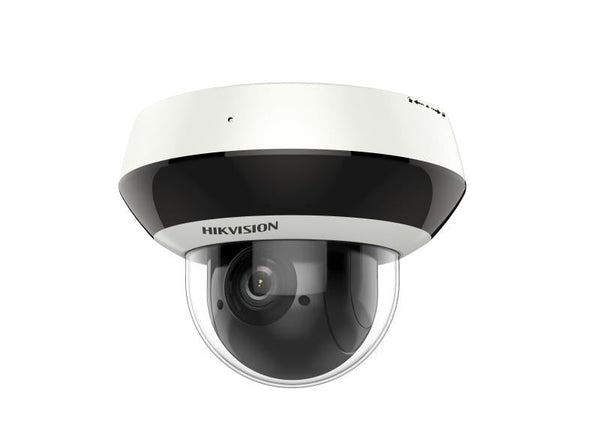

The Hikvision DS-2DE2A404IW-DE3 is a compact 4 MP mini PTZ camera designed for flexible indoor and outdoor applications. It delivers 2560 × 1440 resolution via a 1/2.8″ progressive-scan CMOS sensor and features a 2.8–12 mm 4× optical zoom lens for optimised area coverage. Smart IR illumination reaches up to 20 m, ensuring clear imaging in low-light environments. With IP66 weather protection and IK10 vandal resistance, the DS-2DE2A404IW-DE3 is ideal for corridor, retail and convenience-store installations.

Key Features

• 4 MP QHD resolution: Delivers crisp, detailed video suitable for both general monitoring and close-range identification. The 2560 × 1440 resolution captures finer detail than standard 1080p cameras, improving the overall evidence quality and making it easier to detect important visual information.

• 4× optical + 16× digital zoom: Provides the ability to quickly switch from wide-angle coverage to focused inspection. Optical zoom maintains full image clarity, making the camera highly effective for tracking moving subjects or monitoring distant access points without distortion.

• 120 dB true WDR: Enhances visibility in environments with bright backlight or varied illumination. This ensures more consistent image quality across different lighting conditions, such as indoor–outdoor transitions, carparks or entrances facing direct sunlight.

• Up to 20 m IR illumination: The built-in infrared LEDs provide dependable night vision, offering clear detail even in complete darkness. The IR system ensures consistent surveillance after sunset and improves security coverage for outdoor installations.

• Full PTZ functionality: Includes pan, tilt, zoom, preset tours, patterns and patrol functions. These allow operators to automate scanning routines or respond manually to live events, improving site awareness and proactive security management.

• H.265+/H.265/H.264+ support: Ensures broad compatibility with modern NVRs while delivering strong compression efficiency. This reduces recording storage costs and supports smoother remote viewing over constrained network connections.

• PoE and 12 VDC power options: Flexible installation options make the camera suitable for both professional and retrofit environments. PoE simplifies installation by providing power and data over a single cable.

• IK10 & IP66 protection: Provides strong impact and weather resistance, making the camera ideal for high-traffic, exposed or vandal-prone outdoor locations where reliability is critical.

•


-------------------------------------------------------------------------------------------

Specifications Summary

Please verify final suitability, finish and firmware compatibility against current manufacturer / distributor listings before publishing.
