Product Overview

Combining Hikvision’s powerful PTZ technology with full-colour wide-angle imaging, this TandemVu camera offers both large-area coverage and detailed zoom in a single unit. Equipped with 4MP resolution, 25× optical zoom, and dual low-light imaging technologies, it delivers high clarity footage day and night.

Key Features

Captures a large area and great details at the same time
High quality imaging with 4 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology and ColorVu technology
Secures an expansive area with 25× optical zoom and 16× digital zoom
Supports WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus
Expansive night view with up to 100 m IR distance & 30 m white light
Supports 12V DC & PoE+
Focuses on human and vehicle targets classification based on deep learning

--------------------------------------------------------------------------------------------

Technical Specifications:

Camera Performance

Image Sensor (Bullet Channel): 1/3″ Progressive Scan CMOS
Image Sensor (PTZ Channel): 1/2.8″ Progressive Scan CMOS
Maximum Resolution: 2560 × 1440 (4MP Ultra HD)
Minimum Illumination:
- Bullet Channel: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with White Light
- PTZ Channel: 0.005 Lux @ (F1.6, AGC ON), 0.001 Lux B/W, 0 Lux with IR
Shutter Speed: 1s to 1/30,000s

Lens & Zoom Capabilities

Bullet Channel Focal Length: 2.8mm (Wide-Angle)
PTZ Channel Focal Length: 4.8mm–120mm (25× Optical Zoom)
Field of View (FOV):
- Bullet Channel: Horizontal 96.1°, Vertical 52.1°, Diagonal 113.3°
- PTZ Channel: Horizontal 55° to 2.4°, Vertical 33° to 1.4°, Diagonal 61.5° to 2.8°
Aperture: Bullet F1.0, PTZ F1.6
Zoom Speed (PTZ Channel): Approx. 3.6s

Night Vision & Smart Illumination

Supplement Light Type: IR (PTZ) & White Light (Bullet)
IR Range (PTZ Channel): Up to 100m
White Light Range (Bullet Channel): Up to 30m
Smart Supplement Light: Yes

PTZ & Motion Tracking

360° Endless Pan & -15° to 90° Tilt (Auto-Flip)
Configurable Pan & Tilt Speeds (0.1° to 80°/s)
300 Preset Positions & 8 Patrols (32 Presets per Patrol)
Auto-Tracking & Smart Event Detection

AI Features & Smart Detection

Deep Learning-Based Motion Detection – Reduces false alarms from rain, animals, or light changes
Face Capture – Detects up to 5 faces simultaneously
Region People Counting – Monitors crowd density & movement
Smart Tracking – Follows moving targets within the surveillance area

Audio & Alarm Capabilities

Built-in Audio In/Out for Two-Way Communication
1 Alarm Input & 1 Alarm Output for System Integration

Weatherproofing & Build Quality

IP66-Rated for Outdoor Durability
6000V Lightning & Surge Protection
Operating Temperature Range: -30°C to 65°C (-22°F to 149°F)

Connectivity & Storage

RJ45 Ethernet (10M/100M)
MicroSD Storage (Up to 256GB)
PoE+ & 12V DC Power Supply

Please verify final suitability, finish and firmware compatibility against current manufacturer / distributor listings before publishing.

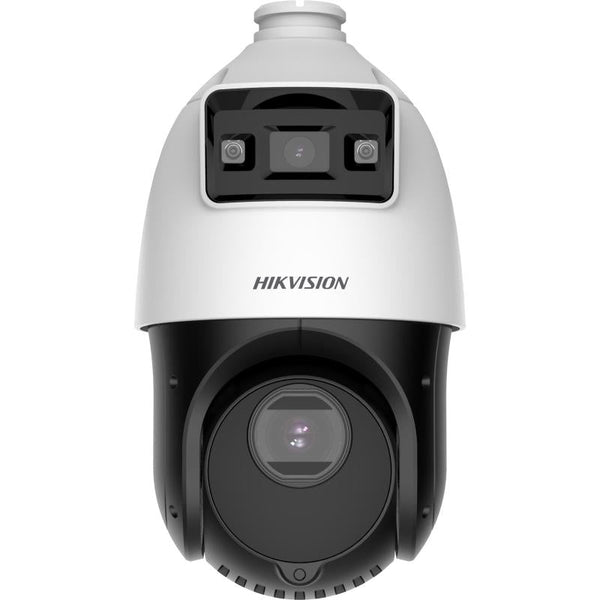

DS-2SE4C425MWG-E(14F0) Hikvision TandemVu PTZ Camera
