Product Overview

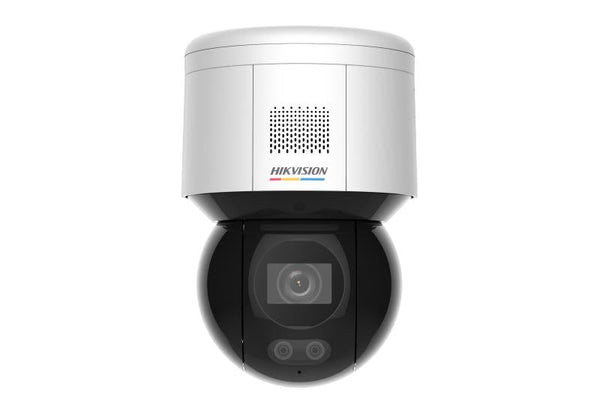

The Hikvision DS-2DE3A400BW-DE is a 4MP Pan and Tilt ColorVu Network Camera that delivers vivid full-colour footage around the clock. With ultra-low light sensitivity down to 0.0005 Lux and built-in white light illumination, this compact PT model ensures optimal visibility in challenging conditions. The camera incorporates AcuSense technology for accurate human and vehicle classification, and includes an onboard microphone and speaker for real-time audio intervention. Please note: this camera does not have zoom functionality but offers full pan and tilt controls for flexible wide-area coverage—ideal for entrances, retail spaces, or open-plan monitoring zones.

Key Features

Focuses on human and vehicle targets classification based on deep learning
Face capture: automatic selection of best shot; up to 5 faces detected and captured at the same time
Linked audible and visual alarm. Built-in microphone and speaker
Up to 2560 × 1440 @ 30 fps
Min. illumination: Color: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with white light
24/7 colorful imaging with low power consumption. Up to 30 m white light distance
120 dB WDR, 3D DNR, HLC
IP66; PoE

---------------------------------------------------------------------------------------------

Specifications Summary

Lens Type: Fixed PTZ
Focal Length and FOV: 4mm, Horizontal FOV: 88.7°, Vertical FOV: 46.5°, Diagonal FOV: 105.0°
DORI Distance: Not specified (Panoramic tracking)
Audio Type: None
Night Vision Range (White Light): Up to 30 metres

Technical Specifications

Image Sensor: 1/1.8” Progressive Scan CMOS
Resolution: 2560 × 1440 (4MP)
Minimum Illumination: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Speed: 1/1 to 1/30,000 s
Lens Options: 4mm fixed
Day/Night Mode: Full-time ColorVu
Ingress Protection: IP66
Video Compression: H.265+/H.265/H.264+/H.264
Pan Range: 350°, Tilt Range: 0° to 90°
Pan Speed: 0.1° to 60°/s (configurable), preset speed: 60°/s
Tilt Speed: 0.1° to 50°/s (configurable), preset speed: 50°/s
Digital Zoom: 16x
White Light Range: Up to 30m

Please verify final suitability, finish and firmware compatibility against current manufacturer / distributor listings before publishing.

DS-2DE3A400BW-DE(T5) Hikvision PTZ Camera
