Product Overview

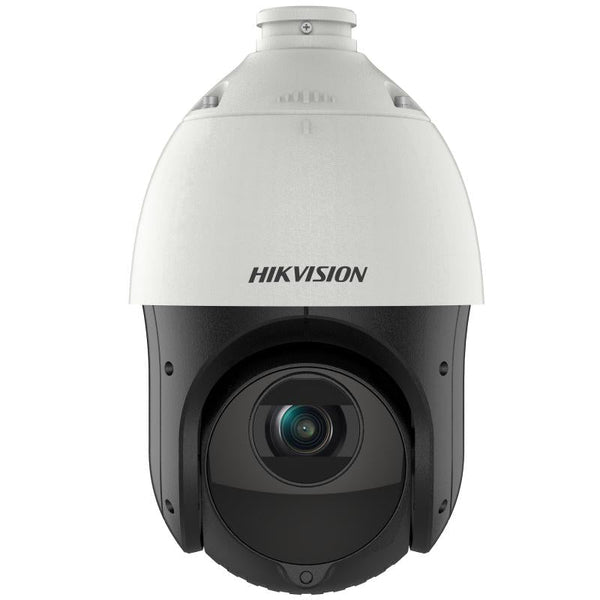

The Hikvision DS-2DE4425IW-DE is a compact 4-megapixel outdoor PTZ camera designed for versatile large-area monitoring. Featuring 25× optical zoom, powered-by-DarkFighter low-light technology, and 360-degree endless panning, it delivers clear imaging day and night with an IR range up to 100 metres. Its durable IP66 construction makes it suitable for demanding outdoor environments while H.265/H.265+ compression optimises bandwidth efficiency.

Key Features

Focuses on human and vehicle targets classification based on deep learning
Support face capture. Up to 5 faces captured at the same time
1/2.8" progressive scan CMOS
High quality imaging with 4 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
25× optical zoom and 16× digital zoom provide close up views over expansive areas
Expansive night view with up to 100 m IR distance
Support H.265+/H.265 video compression

----------------------------------------------------------------------------------------

Camera
Image Sensor:		1/2.8″ Progressive Scan CMOS
Effective Pixels:		1920(H)x1080(V)
Signal System:		PAL/NTSC
Minimum Illumination:		Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001Lux @(F1.6, AGC ON) 0 Lux with IR
White Balance:		Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
AGC:		Auto/Manual
BLC:		ON/OFF
HLC:		Support
Smart defog:		Support
WDR:		120dB
Shutter Time:		50Hz: 1/1 s to 1/30,000 s 60Hz: 1/1 s to 1/30,000 s
Day& Night:		ICR
Digital Zoom:		16X
Privacy Mask:		24 programmable privacy masks
Auto Focus:		Auto / Semi-automatic / Manual

Lens
Focal Length:		4.8 mm to 120 mm, 25× optical zoom
Zoom Speed:		Approx. 3.6 s (optical lens, wide-tele)
Field of View:		Horizontal field of view: 57.6° to 2.5° (Wide-Tele) Vertical field of view: 34.4° to 1.4° (Wide-Tele) Diagonal field of view: 64.5° to 2.9° (Wide-Tele)
Minimum Working Distance:		10 mm to 1500 mm (wide-tele)
Aperture Range:		F1.6 to F3.5

Pan & Tilt
Pan Range:		360°endless
Pan Speed:		Configurable, from 0.1°/s to 80°/s, Preset speed: 80°/s
Tilt Range:		-15°-90° (Auto Flip )
Tilt Speed:		Configurable, from 0.1°/s to 80°/s, Preset speed: 80°/s
Number of Preset:		300
Patrol:		8 patrols, up to 32 presets per patrol
Pattern:		4 pattern scans, record time over 10 minutes for each scan
Power-off Memory:		Support
Park Action:		Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PTZ Position Display:		ON/OFF

Infrared
IR Distance:		100m
IR irradiation angle:		Adjustable by zoom

Input & Output
Audio Input:		1-ch audio input
Audio Output:		1-ch audio output

Network
Ethernet:		1 RJ45 self-adaptive 10 M/100 M Ethernet Interface
Max.Image Resolution:		1920×1080
Main Stream:		50Hz:25fps (1920×1080,1280×960,1280×720), 50fps (1280×960,1280×720) ; 60Hz:30fps(1920×1080,1280×960,1280×720), 60fps (1280×960,1280×720)
Sub Stream:		50Hz: 25fps(704×576, 640×480,352×288); 60Hz: 30fps(704×480, 640×480,352×240)
Third Stream:		50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640×480,352×288) 60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640×480,352×288)
Video Compression:		Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG
ROI encoding:		Main stream, sub-stream, and third stream respectively support four fixed areas.
Audio Compression:		G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Protocols:		IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Simultaneous Live View:		Up to 20 channels
Three-Stream:		Support
Storage:		Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
User/Host:		Up to 32 users, 3 levels: Administrator, Operator and User
Security Measures:		User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering

Client GUI
Client:		iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web Browser:		IE 8 to 11,Chrome 31.0+, Firefox 30.0+, Edge 16.16299+

General
Language:		32 languages. English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power Consumption:		12 VDC, 2.0 A and PoE (802.3at), 42.5 to 57 VDC, 0.6A, Class4 Max.18 W, including max.7W for IR
Working Temperature/Humidity:		-30°C to 65°C (-22°F to 149°F) 90% or less
Protection Level:		IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection
Material:		ADC 12, PC, PC+10%GF
Dimensions:		Φ 164.5 mm × 290 mm (Φ 6.48″ × 11.42″)
Weight (approx.):		Approx. 2 kg (4.41 lb)

Please verify final suitability, finish and firmware compatibility against current manufacturer / distributor listings before publishing.

DS-2DE4425IW-DE(T5) Hikvision PTZ Camera
