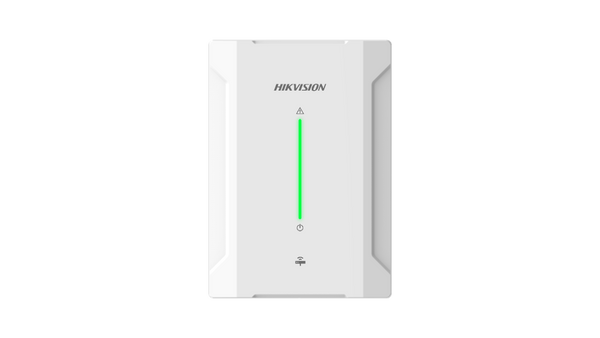

DS-PM1-RT-HWB Hikvision I/O Module

Product Overview

The Hikvision DS-PM1-RT-HWB is a 433MHz Tri-X wireless receiver designed for the AX Hybrid Pro V1 control panel. It expands the panel’s wireless capability, allowing integration of Hikvision Tri-X detectors, indoor sounders, and outdoor sounders for enhanced security coverage. With a wireless transmission range up to 1300m, AES encryption, and reliable Speed-X bus communication, this receiver ensures secure and flexible system expansion.

Key Features

• 433MHz wireless receiver
• Wireless transmission distance up to 1300m
• Supports 32 wireless detectors，8 wireless indoor sounders and 4 wireless outdoor sounders

-------------------------------------------------------------------------------

• Electrical characteristics
• Power supply9 to 28 VDC, 1A
• Power consumption

  Maximum current 100 mA@12 VDC;

  Quiescent current 40 mA@12 VDC

• Wireless transmission
• RF frequency433 MHz
• Wireless security Frequency hoping 128 AES encryption

• Display
• LED Indicator

  Green: power/find me

• Orange: alarm/fault

• General
• Dimension(WxHxD)110 mm × 155 mm × 32 mm
• Shell material Plastic
• 233 g
• Operation temperature-10°C to 40°C
• Operation humidity10% to 90%

• Device management
• Alarm input Up to 32 wireless detectors(portable emergency button is not included)
• Wireless sounderUp to 4 wireless indoor sounder, 8 wireless outdoor sounder
