Product Overview

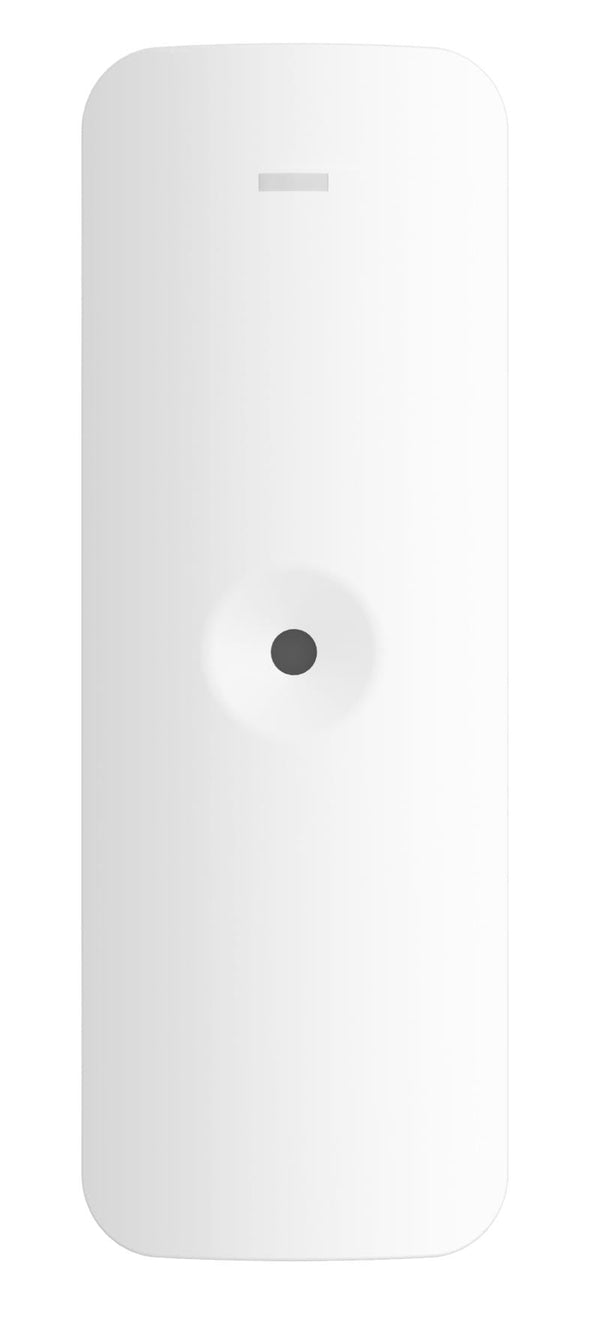

The DS-PDBG8-EG2 is a Hikvision detector intended for use with compatible intrusion alarm systems.

Key Features

High quality Omni-directional microphone sensor
Up to 8m/120° detection coverage
Selectable EOL resistors（Alarm Resistance: 1K, 2K2, 4K7, 5K6, 6K8/）
9-16 VDC wide voltage adaptation with polarity reverse connection protection

------------------------------------------------------------------------------------

Detection Performance

Detection Method

Acoustic Sensor

Detection Range

8m

Detection Angle

120°

Glass Break Sensitivity

Potentiometer Adjustment

Glass Type

Float;Plate;Tampered;Wired;Laminated Leaded;Double Glazing

Glass Thickness

2.4mm to 6.4mm

Glass Size

0.3m x 0.3m to 3m x 3m

Feature

Digital Processing

Support

Tamper Protection

Front

Interface

Alarm Output

Normally Closed

LED Indicator

Red(High Frequency Trigger), Green(Low Frequency Trigger), Blue(Alarm)

Electrical Characteristics

Power Supply

9 to 16 VDC

Typical Voltage

12V

Power Consumption

Maximum current：25mA @12VDC Quiescent current：25mA @12VDC

General

Operation Temperature

-10°C to 55°C (14°F to 131°F)

Storage Temperature

-20°C to 60°C (-4°F to 140°F)

Operation Humidity

10% to 90%

Dimension(WxHxD)

38.8 mm × 107 mm × 22.5 mm

49.5g

Mounting Method

Wall;Ceiling

Application Scenario

Indoor

Please verify final suitability, finish and firmware compatibility against current manufacturer / distributor listings before publishing.

DS-PDBG8-EG2 Hikvision Detector
