Product Overview

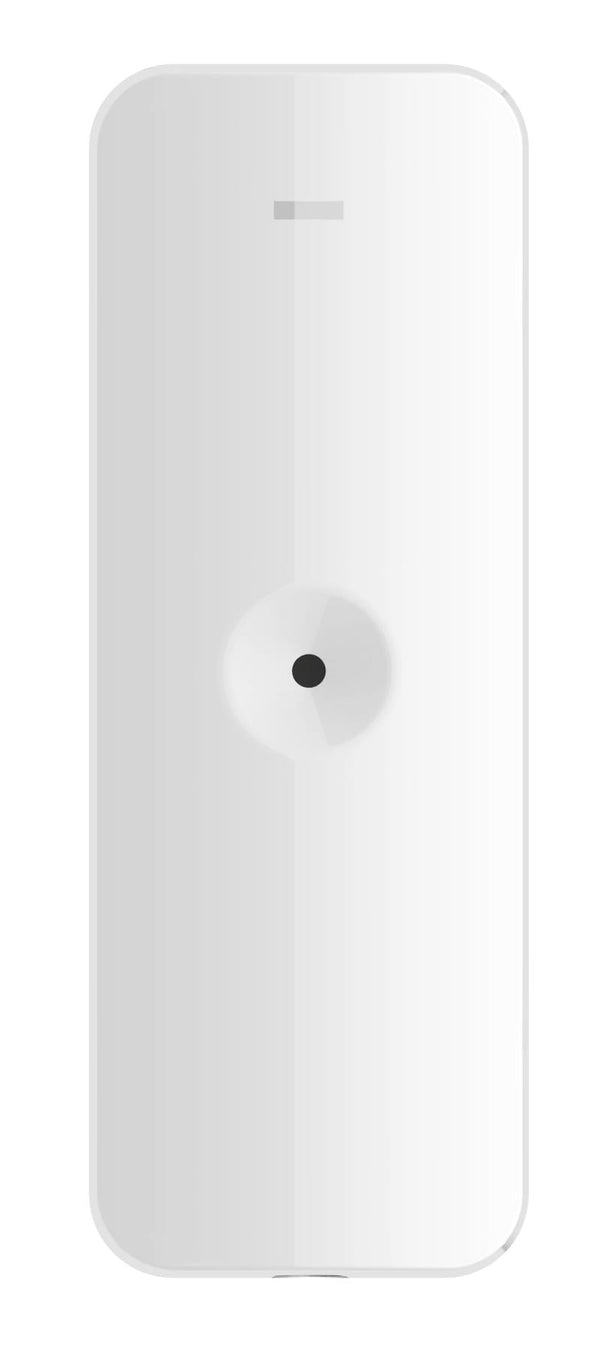

The DS-PDBG8-EG2-WB is a Hikvision detector intended for use with compatible intrusion alarm systems. This is a wireless model for quicker installation and more flexible positioning.

Key Features

Detector
Wireless model
Security system integration
Installation ready

--------------------------------------------------------------------------------

Detection Performance

Detection Method Acoustic Sensor
Detection Range 8m
Detection Angle 120°
Sensitivity 2m;4m;6m;8m
Glass Type: Float, Plate, Tampered, Wired, Laminated, Leaded, Double Glazing
Glass Thickness2.4mm to 6.4mm
Glass Size0.3m x 0.3m to 3m x 3m

Feature

Digital Processing Support
Tamper Protection Front; Rear
Environment Temperature Indicator Support
Signal Strength Indicator Support

Interface

Alarm Input Normally Closed; Normally Open; Impulse Count
Power Switch Power Up Enrolling
LED Indicator Blue(Alarm)

Transmission

Transmission Technology Tri-X Wireless
Transmission Method Two-Way RF Wireless
Transmission Frequency 433MHz
Transmission Security AES-128 Encryption
Transmission Range(Free Space)1Km
Frequency Hopping Support
Enrolling Method Power up; Remote ID;QR Code

Electrical Characteristics

Power Supply Battery Powered
Battery TypeCR123A × 2
Typical Voltage3V
Standard Battery Life5 years in work status (being triggered 20 times per day)

General

Operation Temperature -10 °C to 55 °C (14 °F to 131 °F)
Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)
Operation Humidity 10% to 90%
Dimension(WxHxD)38.8mm × 107.0mm × 24.5mm
83g
Mounting Method Wall; Ceiling
Application Scenario Indoor

Please verify final suitability, finish and firmware compatibility against current manufacturer / distributor listings before publishing.
