Product Overview

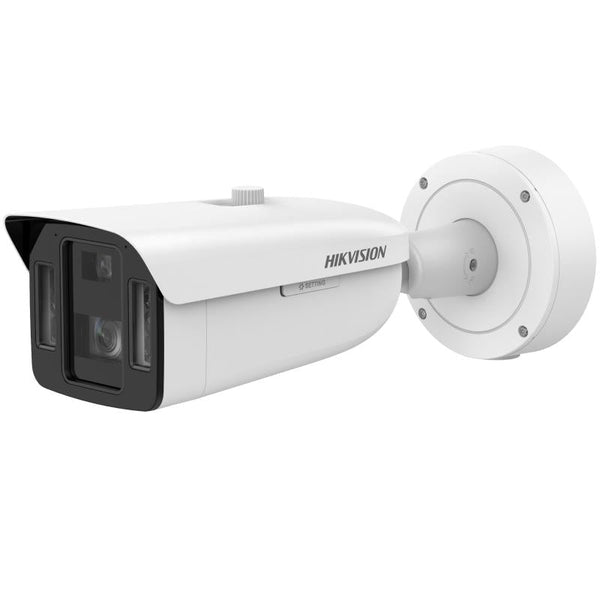

The IDS-2CD8A46G0-XZHSY-8-32 is a Hikvision 4MP smart bullet camera designed for professional surveillance in residential, commercial and project installations. This variant uses a 8-32mm lens. It is intended for reliable monitoring and integration with compatible Hikvision recorders and software.

Key Features

High quality imaging with 4 MP resolution in channel 1 and 4 MP resolution in channel 2
Adopt dual-channel design so you can get details in channel 1 and panorama view in channel 2
Excellent low-light performance via DarkFighter and ColorVu technology
Clear imaging against strong back light due to 140 dB WDR technology
Efficient H.265+ compression technology to save bandwidth and storage
5 streams to meet a wide variety of applications
Water and dust resistant (IP67) and vandal proof (IK10)

-------------------------------------------------------------------------------------------

Camera
Image Sensor
Channel 1: 1/1.8″ Progressive Scan CMOS,

Channel 2: 1/1.8 Progressive Scan CMOS”
Max. ResolutionChannel 1: 2688 × 1520, channel 2: 2560 × 1440
Min. Illumination
Channel 1: Color: 0.0005 Lux @ (F1.2, AGC ON), 0 Lux with Light, B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR,

Channel 2: Color: 0.0003 Lux @ (F1.0, AGC ON), 0 Lux with Light, B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR
Shutter Time1 s to 1/100000 s
Day & Night
IR cut filter,

Blue glass module (less ghost phenomenon)
Angle AdjustmentPan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360°

Lens
Focal Length & FOV
Channel 1: 8 to 32 mm : horizontal FOV 42.5° to 15.2°, vertical FOV: 23.4° to 8.7°, diagonal FOV 49.7° to 17.3°

Channel 2: 4 mm: horizontal FOV: 89°, vertical FOV: 45°, diagonal FOV: 107°
FocusChannel 1: Auto, semi-auto, manual
Iris Type
Channel 1: P-iris,

Channel 2: Fixed
Aperture
Channel 1: Constant F1.6 throughout the zoom range,

Channel 2: F1.0

DORI
DORI
Channel 1:

Wide: D: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15 m

Tele: D: 400 m, O: 158.7 m, R: 80 m, I: 40 m

Channel 2:

D: 77 m, O: 30.5 m, R: 15.4 m, I: 7.7 m

Illuminator
Supplement Light TypeHybrid (IR and White Light)
Supplement Light Range
Channel 1: up to 100 m,

Channel 2: up to 30 m
Smart Supplement LightYes
IR Wavelength850 nm

Video
Main Stream
Channel 1:

50 Hz: 50 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

60 Hz: 60 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

Channel 2:

50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream
Channel 1:

50 Hz: 25 fps (704 × 576, 640 × 480)

60 Hz: 30 fps (704 × 480, 640 × 480)

Channel 2:

50 Hz: 25 fps (704 × 576, 640 × 480)

60 Hz: 30 fps (704 × 480, 640 × 480)
Third Stream
Channel 1:

50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Channel 2:

50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream
Channel 1:

50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Channel 2:

50 Hz: 25 fps (704 × 576, 640 × 480)

60 Hz: 30 fps (704 × 480, 640 × 480)
Fifth Stream
Channel 1:

50 Hz: 25 fps (704 × 576, 640 × 480)

60 Hz: 30 fps (704 × 480, 640 × 480)

Channel 2:

50 Hz: 25 fps (704 × 576, 640 × 480)

60 Hz: 30 fps (704 × 480, 640 × 480)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG,

Third stream: H.265/H.264,

Fourth stream: H.265/H.264/MJPEG,

Fifth stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR,VBR
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region Of Interest (ROI)4 fixed region(s) for each stream
Target CroppingYes

Audio
Audio TypeMono sound
Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise FilteringYes

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
Simultaneous Live ViewUp to 20 channels
APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/Host
Up to 32 users

3 user levels: administrator, operator, and user
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3
Network Storage
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ClientiVMS-4200,Hik-Connect
Web Browser
Plug-in required live view: IE 10, IE11,

Plug-in free live view: Chrome 57.0+, Firefox 52.0+

Image Parameters SwitchYes
Image SettingsSaturation,brightness,contrast,sharpness,AGC,white balance,adjustable by client software or web browser
Day/Night Switch
Channel 1: Day, Night, Auto, Schedule, Alarm Trigger, Video Trigger,

Channel 2: Day, Night, Auto, Schedule, Alarm Trigger
Wide Dynamic Range (WDR)140 dB
Image Enhancement
Channel 1: BLC, HLC, 3D DNR, Defog, EIS,

Channel 2: BLC, HLC, 3D DNR, Defog
Privacy Mask8 programmable polygon privacy masks
Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

Interface
Video Output1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
Ethernet Interface
1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Alarm2 input(s), 2 output(s) (max. 24 VDC, 1 A)
Audio
1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset KeyYes
Power Output12 VDC, max. 50 mA

Event
Basic EventMotion detection,video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full,HDD error,video quality diagnosis, vibration detection
Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)),

Scene change detection,audio exception detection,defocus detection
LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,white light flashing

Deep Learning Function
Multi-Target-Type Detection
Channel 1,

Detects up to 60 targets simultaneously,

Supports simultaneous detection and capture of human body, face and vehicle,

Gets 7 face features,

Gets 13 human body features,

Gets 2 vehicle features
Face Capture
Channel 1,

Detects up to 120 faces simultaneously,

Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°,

Uploads face with background and closed-up face pictures
Face Comparison
Channel 1,

Up to 10 face libraries. 30,000 faces for each library. 150,000 faces in total. ,

Recognizes face identity via face modeling, grading and comparing to those in face library,

Supports face library encryption
Perimeter Protection
Channel 1,

Line crossing, intrusion, region entrance, region exiting,

Support alarm triggering by specified target types (human and vehicle),

Channel 2,

Line crossing, intrusion, region entrance, region exiting,

Support alarm triggering by specified target types (human and vehicle)
Road Traffic And Vehicle Detection
Channel 1,

Blocklist and allow list: up to 10,000 records

Support license plate recognition of motorcycles (only in checkpoint scenario)

Support vehicle attribute detection, including vehicle type, color, brand, etc. (City Street mode is recommended.)

License plate recognition rate ≥98%

General
Power
Three-core terminal block,

12 VDC ± 20%, 1.90 A, max. 22.7 W,

24 VAC ± 20%, 1.39 A, max. 22.3 W,

PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.59 A to 0.44 A, max. 24.7 W
Material Aluminum alloy body
Dimension
Ø140 mm × 410.1 mm (Ø5.5 × 16.1\”)”
Package Dimension462 mm × 197 mm × 195 mm (18.2″ × 7.76″ × 7.68″)
Weight
Approx. 2.2 kg (4.85 lb.)
With Package Weight
Approx. 3.38 kg (7.45 lb.)
Storage Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions
With -H: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing),

Without -H: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function Heartbeat,one-key reset,mirror,password protection, privacy mask, watermark, IP address filter, flash log, conreol time out, anti-banding
Heater Yes
Demist Yes

Approval
EMC
FCC: 47 CFR Part 15, Subpart B,

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

RCM: AS/NZS CISPR 32: 2015,

IC: ICES-003: Issue 7,

KC: KN32: 2015, KN35: 2015
Safety
UL: UL 62368-1,

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017,

LOA: IEC/EN 60950-1
Environment
CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006
ProtectionIP67: IEC 60529-2013,IK10: IEC 62262:2002
Anti-Corrosion Protection-Y model: NEMA 4X (NEMA 250-2018)
Automotive And RailwayEN50121-4
OtherPVC FREE

Please verify final suitability, finish and firmware compatibility against current manufacturer / distributor listings before publishing.
