Product Overview

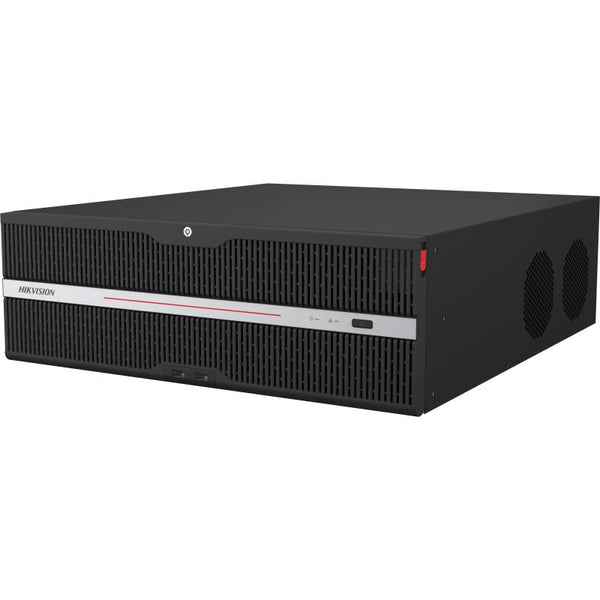

The DS-96128NXI-S16R is a robust 3U Ultra-Series NVR that supports up to 128 IP cameras, delivers HDMI output up to 8K, and offers advanced AI analytics (face recognition, perimeter protection, AcuSearch). With flexible RAID storage options (0/1/5/6/10 + N+M hot spare) and redundant power, it’s suited for large-scale, mission-critical video surveillance deployments.

Key Features

Up to 32×1080p decoding capacity
H.265+/H.265/H.264+/H.264 video formats
Up to 128-ch IP cameras can be connected
Intelligent analytics supports facial recognition, perimeter protection, video structuralization, AcuSearch
Up to 8-ch IP speakers can be connected
Supports RAID 0, 1, 5, 6, 10 and N+M hot spare for even more reliable data storage, effectively avoids data loss risks
HDMI video output at up to 8K resolution
Redundant power supply

----------------------------------------------------------------------------------------

Feature	Detail
IP camera support	Up to 128 channels, up to 32 MP resolution
Video compression	H.265+, H.265, H.264+, H.264
Incoming / outgoing bandwidth	1280 Mbps incoming, 1024 Mbps outgoing (in RAID: 640 / 512 Mbps)
HDMI & VGA outputs	HDMI1 & HDMI2: up to 4K; HDMI3: up to 8K; HDMI4: 1080p; VGA outputs 1080p
Decoding capability	2 ch @ 32 MP, 2 ch @ 24 MP, 4 ch @ 16 MP, 8 ch @ 8 MP, 16 ch @ 4 MP, 32 ch @ 2 MP
Synchronous playback	16 channels
Analytics (on NVR)	Facial recognition, perimeter protection, video structuralization
Analytics (on camera)	Face recognition, perimeter protection, video structuralization, AcuSearch, motion detection 2.0, ANPR, people counting, VCA
Face library	Up to 64 libraries; up to 300,000 face images (≤ 10 GB total)
RAID & Storage	16 SATA slots, supports RAID 0, 1, 5, 6, 10; supports N+M hot spare; each HDD up to 20 TB
Interfaces & I/O	4 × RJ-45 (10/100/1000/2500 Mbps), 1 eSATA, RS-232 / RS-485, 2 × USB 2.0 (front), 4 × USB 3.0 (rear), 32 alarm inputs / 16 outputs, audio I/O
Remote & network	Supports 256 remote connections; protocols including TCP/IP, IPv4, IPv6, ONVIF, RTSP, HTTP/HTTPS
Power & operating conditions	100–240 VAC, redundant power option; ≤ 100 W (without HDDs); –10 °C to 55 °C; humidity 10–90% non-condensing
Dimensions & weight	442 × 497 × 146 mm; ≤ 12 kg (without HDDs)
Certifications	CE, CB, IC, RCM, UKCA, RoHS, WEEE and more

Please verify final suitability, finish and firmware compatibility against current manufacturer / distributor listings before publishing.

DS-96128NXI-S16R Hikvision AcuSense NVR
