Product Overview

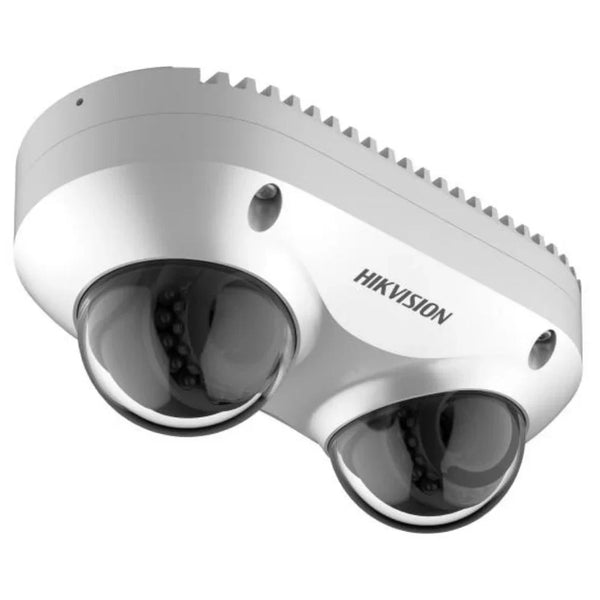

The DS-2XM6D52G0-IM/ND(AE)-2 is a Hikvision mobile camera designed for professional surveillance in residential, commercial and project installations. This variant uses a 2.8mm lens. It is intended for reliable monitoring and integration with compatible Hikvision recorders and software.

Key Features

High quality imaging with 5MP resolution
Dual lens, dual CPU
Flexible Lens: P: -90 to 90°, T: 0 to 60° (2.8 mm), 0 to 70° (4/6 mm), R: 0 to 355°
Efficient H.265+ compression technology
Built-in micro SD/SDHC/SDXC card slot, up to 256 GB
Clear imaging against strong back light due to 120 dB true WDR technology
Water and dust resistant (IP67) and vandal proof (IK10)

------------------------------------------------------------------------------------

Make	Hikvision
Manufacturer	Hikvision
Category	CCTV>IP Dome cameras
Model code	DS-2XM6D52G0-I/ND
Chip Inch Size	1/3 inch
Colour Type	Colour / Monochrome
Resolution TVL	5 MP
Megapixel	Yes
Sensitivity lux	0 ~ 0.009
Electrical Specifications	Voltage: 12 V DC, PoE Power Consumption: 10 W
Focal length	2.8 mm / 4 mm / 6 mm
Compression	H.265/H.264/MJPEG
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1s ~ 1/100,000 s
Network Properties	Network Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS Image Frame Rate: 25 ~ 30 fps
Physical Specifications	Dimensions mm: 164.3 × 84.6 × 67.4 Weight g: 770
Environmental Specifications	Operating Temp ^oC: -30 ~ +60 C (-22 ~ +140 F) Operating Humidity %: < 95 Protection: IP67, IK10
System Requirements	Web Browser: IE8+, Chrome 57.0+, Firefox 52.0+, Safari 11+, Chrome 41.0+, Firefox 30.0+
Additional info	High quality imaging with 5 MP resolution Dual lens, dual CPU Flexible Lens: P: -90 to 90°, T: 0 to 60° (2.8 mm), 0 to 70° (4/6 mm), R: 0 to 355° Efficient H.265+ compression technology Built-in micro SD/SDHC/SDXC card slot, up to 256 GB Clear imaging against strong back light due to 120 dB true WDR technology Water and dust resistant (IP67) and vandal proof (IK10)

Please verify final suitability, finish and firmware compatibility against current manufacturer / distributor listings before publishing.

DS-2XM6D52G0-IM/ND(AE)-2 Hikvision Mobile Camera 2.8mm
