Product Overview

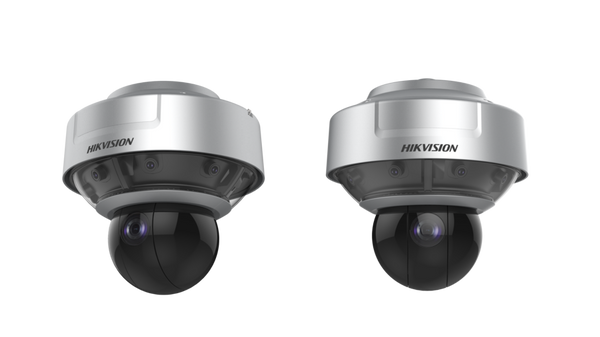

The Hikvision DS-2DP2427ZIXS-DE/440/T2 is a cutting-edge 24MP 270?? Panoramic & PTZ Camera designed for comprehensive surveillance. It combines high-resolution panoramic imaging and precision pan-tilt-zoom (PTZ) capabilities, making it ideal for large area monitoring. Experience superior image quality, extensive coverage, and advanced features with the Hikvision brand and product name. Perfect for complex environments like airports, stadiums, and city surveillance.

Key Features

270° splicing image, the image presents all scenes that covered by the camera
Panoramic camera linkage PTZ design, capturing 270° images with the panoramic camera as well as close-up images with the PTZ camera, the high speed PTZ can offer the function of fast detail positioning over panoramic area
Each lens up to 4 MP, capturing clear images, and more details can be displayed on video wall
Target filtering, based on deep learning algorithms, the targets can be classified into human,vehicle and others to reduce false alarms
Built-in heater, ultra-low temperature start up to -40℃

--------------------------------------------------------------------------------------------

Specification

Camera

- One-touch Link – Yes
- Tracking Mode – Manual/ Auto
- Multiple Targets Tracking – Yes
- Number of Targets – Up to 30 targets can be detected at the same time.
- Target Switch Time – <1 s
- Calibration – Manual/ Auto
- Tracking Duration – Up to 60 s
- Sensitivity Settings – Yes
- Smart Image Enhancement – HLC, BLC, 3D DNR, Regional Exposure

Panoramic Camera

- Image Sensor – 1/1.8″ progressive scan CMOS
- Min. Illumination
  - Color: 0.0005 Lux @(F1.6, AGC ON)
  - B/W: 0.0001 Lux @(F1.6, AGC ON)
- Focal Length – 2.8 mm
- Privacy Mask – 8 programmable polygon privacy masks, mask color configurable
- HLC – Yes
- Field of View
  - Horizontal field of view: 270°
  - Vertical field of view: 85°
- Main Stream Resolution
  - 50Hz: 25fps (8160 × 2400, 6120 × 1800, 5760 × 1696, 3840 × 1080)
  - 60Hz: 30fps (8160 × 2400, 6120 × 1800, 5760 × 1696, 3840 × 1080)
- Sub-Stream Resolution
  - 50Hz: 25fps (2048 × 600, 1280 × 376)
  - 60Hz: 30fps (2048 × 600, 1280 × 376)
- Third Stream Resolution
  - 50Hz: 25fps (4096 × 1200, 3840 × 1080, 2048 × 600, 1280 × 376)
  - 60Hz: 30fps (4096 × 1200, 3840 × 1080, 2048 × 600, 1280 × 376)

Tracking PTZ Camera

- Image Sensor – 1/1.8″ progressive scan CMOS
- Min. Illumination
  - Color: 0.0005 Lux @(F1.2, AGC ON)
  - B/W: 0.0001 Lux @(F1.2, AGC ON)
  - 0 Lux with IR
- SNR – ≥52dB
- Shutter Speed – 1 s to 1/30,000 s
- Slow Shutter – Yes
- Focal Length – 6.0 to 240 mm
- Zoom Speed – Approx. 4.4 s
- FOV
  - Horizontal field of view: 56.6° to 1.8° (Wide-Tele)
  - Vertical field of view: 33.7° to 1.0° (Wide-Tele)
  - Diagonal field of view: 63.4° to 2.0° (Wide-Tele)
- Aperture – F1.2 to F4.5
- Digital Zoom – 16 ×
- Optical Zoom – 40 ×
- WDR – 120 dB
- EIS – Yes
- Optical Defog – Yes
- Regional Focus – Yes
- Pan and Tilt Range – Pan: 360° endless, Tilt: -15° to 90° (Auto Flip)
- Pan and Tilt Speed
  - Pan Manual Speed: 0.1°/s to 210°/s (Configurable), Pan Preset Speed: 240°/s
  - Tilt Manual Speed: 0.1°/s to 150°/s (Configurable), Tilt Preset Speed: 200°/s
- Proportional Zoom – Yes
- Preset – 300
- Patrol Scan – 8 patrols
- Pattern Scan – 4 patterns
- Park Action – Preset/ Pattern Scan/ Patrol Scan/ Auto Scan/ Tilt Scan/ Random Scan/ Frame Scan/ Panorama Scan
- Scheduled Task – Preset/ Pattern Scan/ Patrol Scan/ Auto Scan/ Tilt Scan/ Random Scan/ Frame Scan/ Panorama Scan/ Dome Reboot/ Dome Adjust/ Aux Output
- Privacy Mask – 24 programmable polygon privacy masks, mask color configurable
- Power-off Memory – Yes
- 3D Positioning – Yes
- PTZ Status Display – Yes
- Preset Freezing – Yes
- Main Stream Resolution
  - 50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
  - 60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-Stream Resolution
  - 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)
  - 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream Resolution
  - 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
  - 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Illuminator

- IR Distance – 250 m
- Smart IR – Yes

Video

- H.264 Type – Baseline Profile/Main Profile/High Profile
- Video Compression
  - Main Stream: H.265/H.264
  - Sub-Stream: H.265/H.264/MJPEG
  - Third Stream: H.265/H.264
- H.264+ – Yes
- H.265+ – Yes

Audio

- Audio Compression – G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/ PCM
- Audio Sampling Rate – MP2L2: 16kHz, 32kHz, 44.1kHz, 48kHz, PCM: 8kHz, 16kHz, 32kHz, 44.1kHz, 48kHz

Smart Features

- Smart Event
  - [Panoramic Channel]
    - Intrusion detection, line crossing detection, region entrance detection, region exiting detection
  - [PTZ Channel]
    - Intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
- Smart Tracking – Manual Tracking; Panoramic Tracking; Event Tracking; support patrol tracking in multiple scenes
- Alarm Linkage – Preset, patrol scan, pattern scan, memory card video recording, alarm output, sending email, notify surveillance center, upload to FTP
- Smart Encoding – H.265+, H.264+, ROI, SVC

Network

- Network Storage – NAS (NFS, SMB/CIFS)
- Protocols – TCP/IP, IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
- API – Open-ended API, ONVIF (Profile S, Profile G), ISAPI, Hikvision SDK, Third-party management platform, ISUP
- Simultaneous Live View – 20
- User/Host – 32
- Smooth Streaming – Yes
- Security Measures – Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
- Client – iVMS-4200
- Web Browser – IE 8+

Interface

- Communication Interface – RJ45,Self-adaptive 10 M/100 M/1000 M Ethernet Interface
- Fiber Interface – FC interface, built-in fiber module, 1000M, TX1310/RX1550 nm wavelength, single module fiber, up to 20 km transmission distance
- On-board Storage – Built-in microSD slot, support microSD/microSDHC/microSDXC cards, up to 256 GB
- RS-485 – Half duplex, HIKVISION, Pelco-P and Pelco-D self-adaptive
- Alarm Input – 7-ch alarm input
- Alarm Output – 2-ch alarm output
- Audio Input – 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
- Audio Output – 1 audio output, line level, impedance: 600 Ω

General

- Power – 36 VDC
- Working Temperature – -40°C to 70°C (-40°F to 158°F)
- Working Humidity – ≤ 95%
- Protection – IP66 Standard, IK10, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
- Reset – Yes
- Demist – Yes
- Material – ADC12
- Dimensions – Φ 391.8mm × 400.5mm (Φ 15.43″×15.77″)
- Weight – Approx. 18 kg (39.68 lb)

DORI

- The DORI (detect, observe, recognize, identify) distance gives the general idea of the camera ability to distinguish persons or objects within its field of view. It is calculated based on the camera sensor specification and the criteria given by EN 62676-4: 2015.

Please verify final suitability, finish and firmware compatibility against current manufacturer / distributor listings before publishing.
