Product Overview

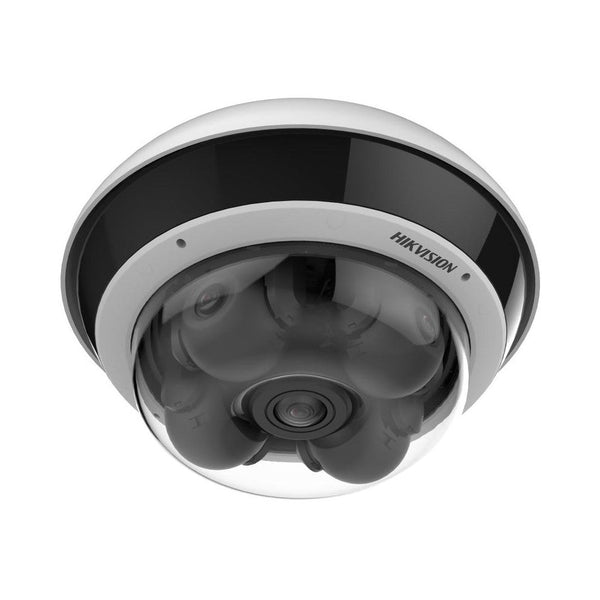

The Hikvision DS-2CD6D552IZHS is a 4-Directional Multisensor Network Camera with an additional 5th 360-degree sensor looking to eliminate any blind spots. It features four adjustable lenses in one camera, covering up to a 360 degrees field of view. This ensures no blind area monitoring as the monitoring tilt angle can be adjusted. Each lens supports up to 5MP, capturing clear images, and more details can be displayed on a video wall. The camera also includes features like ICR, WDR 120dB, on-board storage (SD card not included), IR 30m, smart IPC, 12 VDC/24 VAC, Hi-PoE, audio I/O, alarm I/O 2/2, IK10, and IP675. This makes it a versatile and robust choice for various surveillance needs.

Key Features

4 adjustable lenses in one camera cover up to 360° field of view, ensuring no blind area monitoring and the monitoring tilt angle can be adjusted
Each lens up to 5 MP, capturing clear images, and more details can be displayed on video wall
Clear imaging against strong back light due to 120 dB true WDR technology
Water and dust resistant (IP67) and vandal proof (IK10)
Human and vehicle target classification based on deep learning for up to 4 channels
Unique PTRZ capability for efficient installation
Audio and alarm interface available
One more fixed lens to cover the area beneath the camera

------------------------------------------------------------------------------------------

Specification

- 5-Directional Multisensor Network Camera

Camera

- Image Sensor – Varifocal: 1/2.4″ Progressive Scan CMOS; Fixed: 1/2.5″ Progressive Scan CMOS
- Max. Resolution – 2560 × 1920
- Min. Illumination – Color: 0.005 Lux @ (F1.2, AGC ON), B/W: 0.002 Lux @ (F1.2, AGC ON), B/W: 0 Lux with IR
- Shutter Time – 1 s to 1/100,000 s
- Day & Night – IR cut filter
- Angle Adjustment – Pan: 0° to 350°, tilt: 0° to 90°, rotate: -90° to 90°

Lens

- Lens Type – Varifocal lens, motorized lens, 2.8 to 8 mm, Fixed focal lens, 2 mm
- Focal Length & FOV – Varifocal :2.8 to 8 mm, horizontal FOV 96.5° to 48.9°, vertical FOV 69.9° to 36.5°, diagonal FOV 129° to 61.3°, Fixed:2mm, horizontal FOV 71.68°, vertical FOV 71.68°, diagonal FOV 99.16°
- Lens Mount – Ø 14
- Focus – Varifocal: Semi-auto, Manual
- Aperture – Varifocal: F1.9; Fixed: F2.25

Illuminator

- Supplement Light Type – IR
- Supplement Light Range – Up to 30 m
- IR Wavelength – 850 nm

Video

- Main Stream
  - Channel 1,2,3,4:
  - 50 Hz: 25 fps (2560× 1920, 2048× 1536, 1920 × 1080, 1280 × 720)
  - 60 Hz: 30 fps (2560× 1920, 2048× 1536, 1920 × 1080, 1280 × 720)
  - Channel 5:
  - 50 Hz: 25 fps (1440× 1440)
  - 60 Hz: 30 fps (1440× 1440)
- Sub-Stream
  - Channel 1,2,3,4:
  - 50 Hz: 25 fps (704 × 576, 640 × 480)
  - 60 Hz: 30 fps (704 × 480, 640 × 480)
  - Channel 5:
  - 50 Hz: 25 fps (576× 576, 480× 480)
  - 60 Hz: 30 fps (576× 576, 480× 480)
- Third Stream
  - Channel 1,2,3,4:
  - 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
  - 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
- Video Compression
  - Main stream: H.265+/H.265/H.264+/H.264,
  - Sub-stream: H.265/H.264/MJPEG,
  - Third stream: H.265/H.264
- Video Bit Rate – 32 Kbps to 8 Mbps
- H.264 Type – Baseline Profile, Main Profile, High Profile
- H.265 Type – Main Profile
- Scalable Video Coding (SVC) – H.264 and H.265 encoding
- Region of Interest (ROI) – 4 fixed regions for each stream
- Target Cropping – Yes

Audio

- Audio Compression – G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate – 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate – 8 kHz/16 kHz/32 kHz/48 kHz
- Environment Noise Filtering – Yes

Network

- Protocols – TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, WebSocket, WebSockets, SSL/TLS
- Simultaneous Live View – Up to 20 channels
- API – Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
- User/Host – Up to 32 users, 3 user levels: administrator, operator, and user
- Security – Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface
- Network Storage – NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- Client – iVMS-4200, Hik-Connect
- Web Browser
  - Plug-in required live view: IE 10, IE 11,
  - Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,
  - Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


- Image Settings – Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance, adjustable by client software or web browser
- Day/Night Switch – Day, Night, Auto, Schedule, Alarm Trigger
- Wide Dynamic Range (WDR) – 120 dB
- SNR – ≥ 52 dB
- Image Stabilization – EIS
- Image Enhancement – BLC, HLC,3D DNR, Defog
- Privacy Mask – 8 programmable polygon privacy masks
- Picture Overlay – LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

Interface

- Ethernet Interface – 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
- On-Board Storage – Built-in memory card slot, support microSD/microSDHC/ microSDXC card, up to 1 TB
- Audio
  - 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
  - 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm – 2 inputs, 2 outputs (max. 24 VDC, 1 A)
- RS-485 – 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Reset Key – Yes

Event

- Basic Event – Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
- Smart Event – Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection, unattended baggage detection, object removal detection
- Linkage – Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture

Deep Learning Function

- Perimeter Protection – Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

General

- Power
  - 12 VDC ± 20%, 1.8 A, max. 21.6 W,
  - PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.58 A to 0.43 A, max. 25 W
- Dimension – Ø 290 mm × 148 mm (Ø 11.42″ × 5.8″)
- Package Dimension – 453 mm × 393 mm × 385 mm (17.8″ × 15.47″ × 15.16″)
- Weight – Approx. 4.7 kg (10.36 lb.)
- With Package Weight – Approx. 8.0 kg (17.63 lb.)
- Storage Conditions – -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions – -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language – 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Function – Heartbeat, flash log, password reset via email, pixel counter, password protection, one-key reset, anti-banding

Approval

- EMC
  - CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014,
  - EN IEC 61000-3-2:2019+A1:2021,
  - EN 61000-3-3:2013+A1:2019+A2:2021, EN 50121-4: 2016+A1:2019,
  - RCM: AS/NZS CISPR 32: 2015,
  - IC: ICES-003: Issue 7,
  - KC: KN32: 2015, KN35: 2015
- Safety
  - UL: UL 62368-1,
  - CB: IEC 62368-1: 2014+A11,
  - CE-LVD: EN 62368-1: 2014/A11: 2017,
  - BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
- Environment
  - CE-RoHS: 2011/65/EU,
  - WEEE: 2012/19/EU,
  - Reach: Regulation (EC) No 1907/2006
- Protection – IP67: IEC 60529-2013, IK10: IEC 62262:2002
- Anti-Corrosion Protection – NEMA 4X (NEMA 250-2018)
