Product Overview

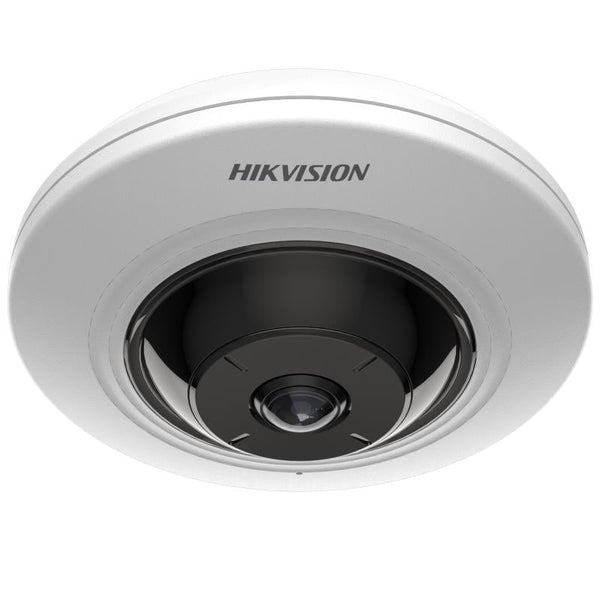

The Hikvision DS-2CD2955G0-IS(U) is a powerful 5 MP Fisheye Network Camera designed for extensive area surveillance. It offers a wide 180° fisheye view, effectively eliminating blind spots and reducing the need for multiple cameras. With advanced H.265+ compression, it ensures efficient storage and bandwidth usage, while its 120 dB true WDR technology guarantees clear imaging even in challenging lighting conditions. This versatile camera is perfect for monitoring large indoor spaces like lobbies, warehouses, and retail stores, providing comprehensive video and audio security.

Key Features

High quality imaging with 5 MP resolution
Efficient H.265+ compression technology
180° fisheye view
Clear imaging against strong back light due to 120 dB true WDR technology
Audio and alarm interface available

----------------------------------------------------------------------------------------

Specification	Details
Product Name	DS-2CD2955G0-IS(U) 5 MP Fisheye Network Camera
Key Features	High quality imaging with 5 MP resolution Efficient H.265+ compression technology 180° fisheye view Clear imaging against strong back light due to 120 dB true WDR technology Audio and alarm interface available
Image Sensor	1/2.7" Progressive Scan CMOS
Max. Resolution	2560 × 1920
Min. Illumination	Color: 0.017 Lux @ (F2.25, AGC ON), B/W: 0 Lux with IR
Shutter Time	1/3 s to 1/100,000 s
Day & Night	IR cut filter
Lens Type	Fixed focal lens, 1.05 mm
Focal Length & FOV	1.05 mm, horizontal FOV: 180°, vertical FOV: 180°, diagonal FOV: 180°
Lens Mount	M12
Focus	Fixed
Iris Type	Fixed
Aperture	F2.25
Depth of Field	0.1 m to ∞
DORI	D: 21 m, O: 8 m, R: 4 m, I: 2 m
Supplement Light Type	IR
Supplement Light Range	Up to 8 m
Smart Supplement Light	Yes
IR Wavelength	850 nm
Main Stream	50 Hz: 25 fps（2560 × 1920, 2048 × 1536, 1280 × 960） 60 Hz: 30 fps（2560 × 1920, 2048 × 1536, 1280 × 960）
Sub-Stream	50 Hz: 25 fps (640 × 480) 60 Hz: 30 fps (640 × 480)
Video Compression	Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
Video Bit Rate	32 Kbps to 16 Mbps
H.264 Type	Baseline Profile, Main Profile, High Profile
H.265 Type	Main Profile
Region of Interest (ROI)	1 fixed region for main stream
Mount Type	Support wall/table/ceiling mounting
Display Mode	Support 14 display modes in total(including display modes of different mount types): Fisheye View, 180 Panorama View, 4PTZ, Fisheye + 3PTZ, 360 Panorama + PTZ, 360 Panorama + 3PTZ, 360 Panorama + 6PTZ, 360 Panorama + 8PTZ, 2PTZ, Fisheye + 8PTZ, Panorama View, Panorama + 3PTZ, Panorama + 8PTZ
Audio Type	Mono sound
Audio Compression	G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate	64 Kbps (G.711 ulaw/G.711 alawm)/16 Kbps (G.722.1)/16 Kbps (G.726)/32~160 Kbps (MP2L2)/16~64Kbps (AAC-LC)
Audio Sampling Rate	8 kHz/16 kHz
Environment Noise Filtering	Yes
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live View	Up to 6 channels
API	Open Network Video Interface (Profile S, Profile T, Profile G), ISAPI
User/Host	Up to 32 users 3 user levels: administrator, operator, and user
Client	iVMS-4200, Hik-Connect, Hik-Central
Web Browser	Plug-in required live view: IE 10+ Local service: Chrome 57.0+, Firefox 52.0+
Security	Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage	NAS (NFS, SMB/CIFS)
Image Settings	Rotate mode, saturation, brightness, contrast, sharpness, white balance, adjustable by client software or web browser
Day/Night Switch	Day, Night, Auto, Schedule
Image Enhancement	BLC, 3D DNR
Wide Dynamic Range (WDR)	120 dB
Ethernet Interface	1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Built-in Microphone	-U: Yes
Audio Interface	1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm Interface	1 input, 1 output (max. 12 VDC, 30 A)
Reset Key	Yes
Power Output	12 VDC, max. 100 mA
Basic Event	Motion detection, video tampering alarm, exception
Smart Event	Line crossing detection, intrusion detection
Linkage	Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output
Power	12 VDC ± 25%, 0.5 A, max. 6 W, Ø 5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W
Material	ADC12
Dimension	Ø 119.9 mm × 41.2 mm (Ø 4.7" × 1.6")
Package Dimension	150 mm × 125 mm × 99 mm (5.9" × 4.9" × 3.9")
Weight	Approx. 320 g (0.7 lb.)
Weight with Package	Approx. 500 g (1.1 lb.)
Storage Conditions	-10 °C to 50 °C (-14 °F to 122 °F). Humidity 95% or less (non-condensing)
Language	13 languages English, Turkish, Polish, Romanian, Czech, Slovak, Traditional Chinese, Thai, Vietnamese, Croatian, Slovenian, Serbian, Ukrainian
Startup and Operating Conditions	-10 °C to 50 °C (-14 °F to 122 °F). Humidity 95% or less (non-condensing)
General Function	Heartbeat, anti-banding, mirror, password protection
EMC	CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
Safety Certifications	UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1
Environment Certifications	CE-RoHS: 2011/65/EU
Anti-corrosion Protection	No specific protection

DS-2CD2955G0-ISU-1.05MM Hikvision 5MP Fisheye Camera 1.05mm
