Product Overview

The Hikvision DS-2CD2346G2P-ISU/SL is a 4 MP panoramic AcuSense fixed turret network camera that delivers high-quality imaging with 4 MP resolution and excellent low-light performance, thanks to its powered-by-DarkFighter technology. It provides a single image encompassing all scenes covered by the camera and ensures clear imaging against strong backlight with 120 dB true WDR technology. The camera focuses on human and vehicle target classification based on deep learning and features an active strobe light and audio alarm to deter intruders.

Key Features

High quality imaging with 4 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
One image that presents all the scenes covered by the camera
Clear imaging against strong back light due to 120 dB true WDR technology
Focus on human and vehicle targets classification based on deep learning
Active strobe light and audio alarm to warn intruders off
Provide real-time security via built-in two-way audio
Water and dust resistant (IP67)

-----------------------------------------------------------------------------------------

Camera

Image Sensor: 2 × 1/2.5″ Progressive Scan CMOS
Max. Resolution: 3040 × 1368
Min. Illumination: Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 30°, Tilt: -75° to 75°

Lens

Lens Type: Fixed focal lens, dual lens, 2.8 mm
Focal Length & FOV: 2.8 mm, horizontal FOV: 180°, vertical FOV: 81°
Lens Mount: M12
Iris Type: Fixed
Aperture: F1.6

DORI

DORI 2.8 mm, D: 37 m, O: 15 m, R: 7 m, I: 3.5 m

Illuminator

Supplement Light Type: IR
Supplement Light Range: Up to 30 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm

Video

Main Stream: 50 Hz: 25 fps (3040 × 1368), 60 Hz: 24 fps (3040 × 1368)
Sub-Stream: 50 Hz: 25 fps (1200 × 536, 960 × 432), 60 Hz: 24 fps (1200 × 536, 960 × 432)
Video Compression: Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline Profile, Main Profile, High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR, VBR
Scalable Video Coding (SVC): H.264 and H.265 encoding
Region of Interest (ROI): 1 fixed region for main stream

Audio

Audio Type: Mono sound
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw), 16 Kbps (G.722.1), 16 Kbps (G.726), 32 to 192 Kbps (MP2L2), 8 to 320 Kbps (MP3), 16 to 64 Kbps (AAC-LC)
Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering: Yes

Please verify final suitability, finish and firmware compatibility against current manufacturer / distributor listings before publishing.

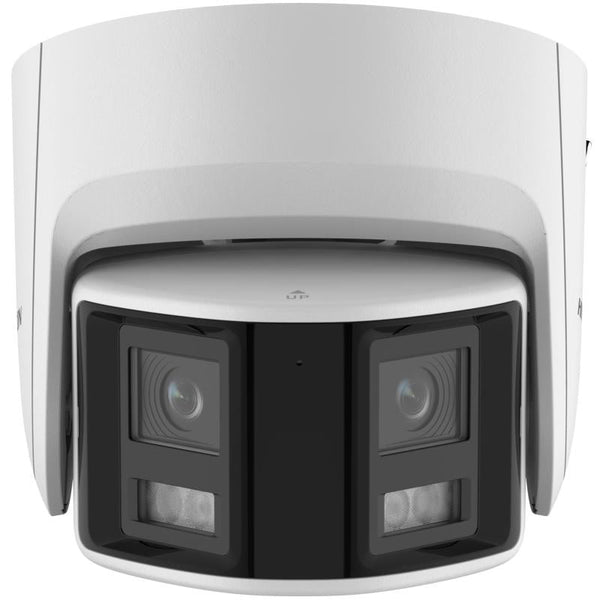

DS-2CD2346G2P-ISU/SL-2.8 Hikvision 4MP AcuSense Active Deterrence Turret Camera 2.8mm
