Product Overview

High quality imaging with 5 MP resolution. Efficient H.265+ compression technology. Clear imaging even with strong back lighting due to 120 dB WDR. Up to 256 GB memory card slot for storage. 2.8 to 12 mm motorized varifocal lens for easy installation and monitoring. Water and dust resistant (IP67) and vandal proof (IK10). EXIR 2.0: advanced infrared technology with long IR range

Key Features

High quality imaging with 5 MP resolution
Efficient H.265+ compression technology
Clear imaging even with strong back lighting due to 120 dB WDR
Up to 256 GB memory card slot for storage
2.8 to 12 mm motorized varifocal lens for easy installation and monitoring
Water and dust resistant (IP67) and vandal proof (IK10)
EXIR 2.0: advanced infrared technology with long IR range

---------------------------------------------------------------------------------------

Camera

Image Sensor1/2.7" Progressive Scan CMOS
Max. Resolution2560 × 1920
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Speed1/3 s to 1/100,000 s
Day & NightIR cut filter
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 70°, rotation: 0° to 355°

Lens

Lens Type Varifocal lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV2.8 to 12 mm: horizontal FOV 96° to 29°, vertical FOV 69° to 22°, diagonal FOV 131° to 37°
Lens MountØ14
Iris Type Fixed
ApertureF1.6

Illuminator

Supplement Light TypeIR
Supplement Light Range Up to 30 m
IR Wavelength850 nm

Video

Main Stream
50 Hz: 20 fps (2560 × 1920)

25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

60 Hz: 20 fps (2560 × 1920)

30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264

Sub-stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main profile
Region Of Interest (ROI)1 fixed region for main stream

Audio

Audio Compression-S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit Rate-S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
Audio Sampling Rate-S: 8 kHz/16 kHz
Environment Noise Filtering-S: Yes

Network

Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live View Up to 6 channels
API Open Network Video Interface, ISAPI
User/Host
Up to 32 users. 3 levels: administrator, operator and user

3 user levels: administrator, operator, and user
ClientiVMS-4200, Hik-Connect
Web Browser
Plug-in required live view: IE 10+

Plug-in free live view: Chrome 57.0+, Firefox 52.0+

Local service: Chrome 57.0+, Firefox 52.0+


Image Settings Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night Switch Auto, Schedule, Day, Night
Wide Dynamic Range (WDR)120 dB
Image Enhancement BLC, 3D DNR

Interface

Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD card, up to 256 GB
Audio
-S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium

1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm-S: 1 input,1 output (max. 12 VDC, 30 mA)
Reset KeyYes

Event

Basic Event Motion detection, video tampering, exception
Linkage Upload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture

General

Power
12 VDC ± 25%, 0.8 A, max. 10 W, Ø5.5 mm coaxial power plug

PoE: 802.3af, Class 3, 36 V to 57 V, 0.32 A to 0.2 A, max. 11.5 W
DimensionØ141 mm × 99.9 mm (Ø5.6" × 3.9")
Package Dimension140 mm × 140 mm × 154 mm (5.5" × 5.5" × 6.1")
Approx. 825 g (1.8 lb.)
With Package Weight Approx. 1080 g (2.6 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language English, Ukrainian
General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Approval

Please verify final suitability, finish and firmware compatibility against current manufacturer / distributor listings before publishing.

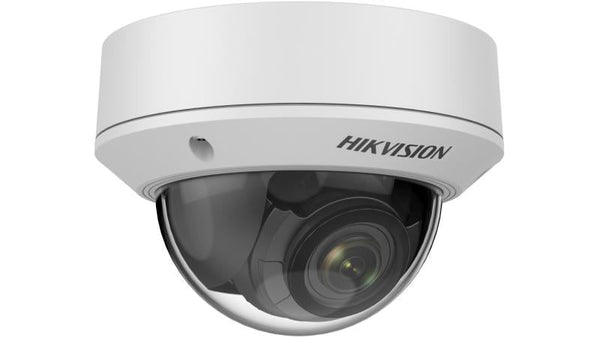

DS-2CD1753G0-IZ Hikvision Dome Camera
